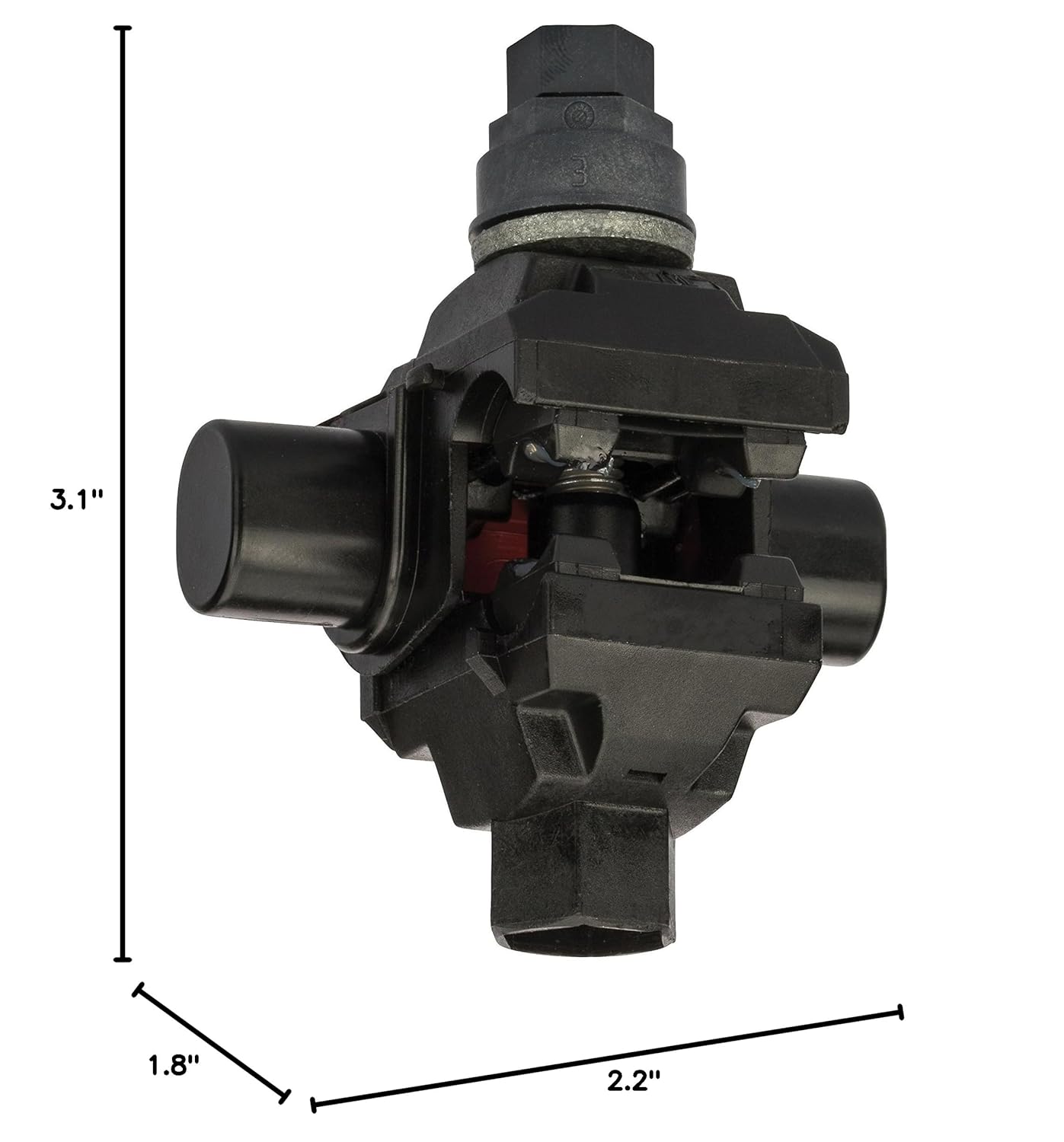

NSI IPCS4002 IPCS Series Easy-Tap Insulation Piercing Connector, 4/0-3 AWG Main and 2-10 AWG tag Conductor Range, 1.8" Width, 3.1" Height, 2.2" Length

This NSi Industries IPCS4002 Easy-Tap insulation-piercing connector is suitable for tapping electrical lines in copper-to-copper, copper-to-aluminum, and aluminum-to-aluminum solid or stranded wire applications. It can be used on main lines from American Wire Gauge (AWG) 4/0 to #3 with tap lines from #2 to #10 AWG. It is fully insulated and can be used on energized conductors as long as the tap line is not under load. Double shear-head bolts ensure that the proper amount of torque is applied during installation. This connector is not recommended for use with extra-flexible cables, is not approved for submersible applications, and cannot be used with bare wire or as a splice. It is rated for 600V and 90 degrees C and meets American National Standards Institute (ANSI) C119.4 requirements and is Underwriters Laboratories (UL) 486B Listed. This insulation-piercing connector is suitable for a wide range of electrical line tapping applications with appropriately sized conductors.SpecificationsMain line size range4/0 to #3 AWGTap line size range#2 to #10 AWGCopper current rating190 ampAluminum current rating150 ampVoltage rating600VTemperature rating90 degrees CDimensions*3.1 x 1.8 x 2.2 inches (H x W x L)Standards metANSI C119.4, UL 486B Listed* H is height, the vertical distance from bottom to top; W is width, the horizontal distance from left to right; L is length, the horizontal distance from front to back.NSi Industries manufactures electrical components and sensors, lighting products, and energy management products. The company, founded in 1975, is headquartered in Huntersville, NC.

• Insulation-piercing connector for tapping electrical lines
• Can be used on main lines from 4/0 to #3 AWG with tap lines from #2 to #10 AWG
• Can be used in copper-to-copper, copper-to-aluminum, and aluminum-to-aluminum solid or stranded wire applications
• Rated for 600V and 90 degrees C
• Meets ANSI C119.4 requirements and is UL 486B Listed
