0.011”-0.060” Pin Gauge Set, Steel Gauge Pin Set with Storage Case, 50pcs Pin Gage Set, M0- Tolerance, Calibrates Gauge, Measures Hole Core Deviation Groove Keyway...
Product details
| Management number | 211708141 | Release Date | 2026/04/04 | List Price | $16.69 | Model Number | 211708141 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
0.011”-0.060” Pin Gauge Set, Steel Gauge Pin Set with Storage Case, 50pcs Pin Gage Set, M0- Tolerance, Calibrates Gauge, Measures Hole Core Deviation Groove Keyway...Size: 0.011”-0.060" at interval of 0.001”, tolerance: -0.0002", length: 2" ± 0.01"Made from bearing steel, heat treated, HRC 60-62, no sharp cornersEach is laser engraved clearly with size50pcs are well organized in a durable storage caseUsed to calibrate gauge, and measure core vibration, hole core deviation, dovetail groove, groove width, keyway width, tooth groove vibration, parallelism of V-groove, radius, aperture, hole spacing, hole position for parallelism, and position milling cutterSPECIFICATION-Material: bearing steel-HRC: 60-62-Size: 0.011”-0.060" (interval: 0.001”)-Tolerance: -0.0002"-Length: 2" ± 0.01"-Smooth Surface Treatment: 0.01mmPACKAGE-50 x Pin Gauge-1 x Storage Case
- Size: 0.011”-0.060" at interval of 0.001”, tolerance: -0.0002", length: 2" ± 0.01"
- Made from bearing steel, heat treated, HRC 60-62, no sharp corners
- Each is laser engraved clearly with size

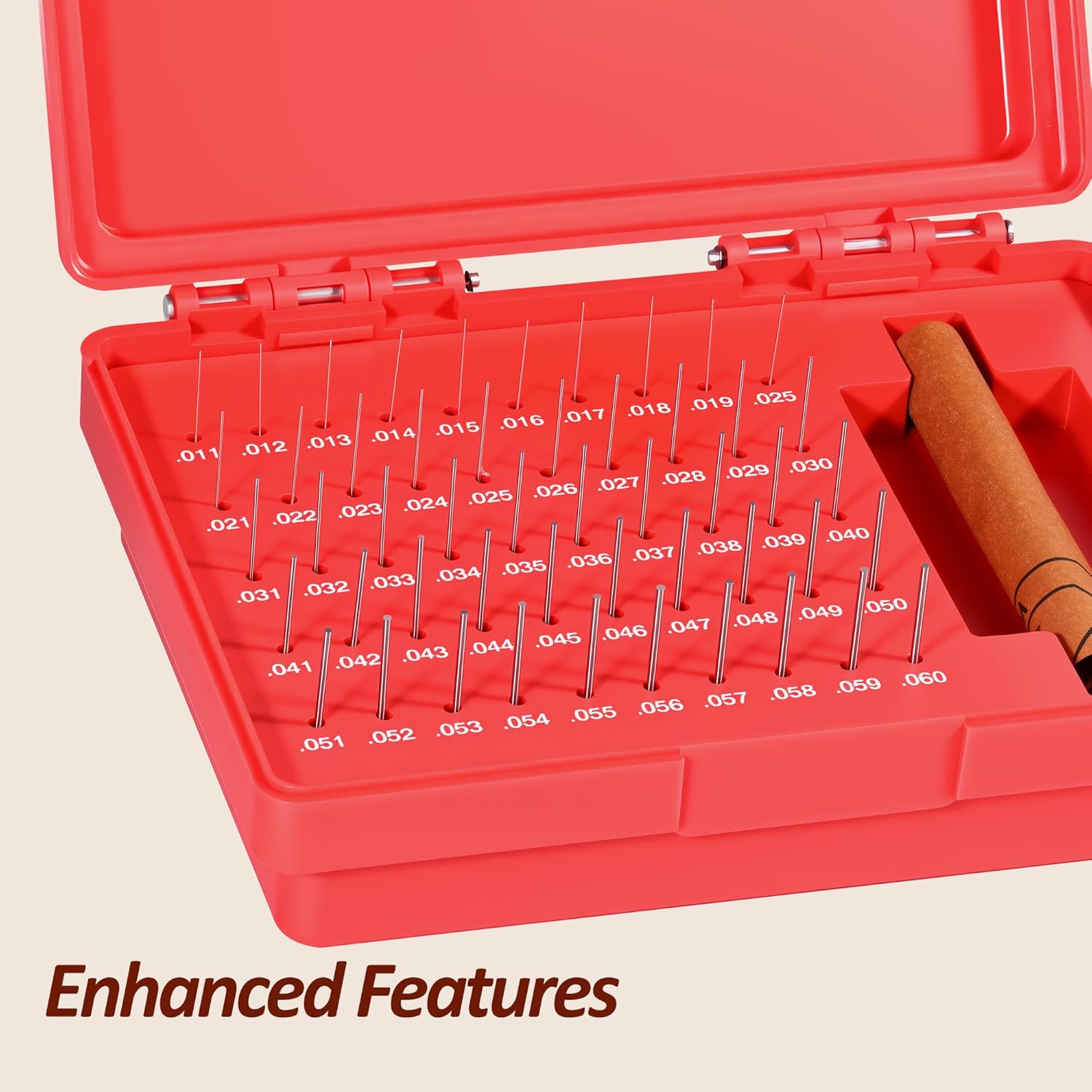

- 50pcs are well organized in a durable storage case

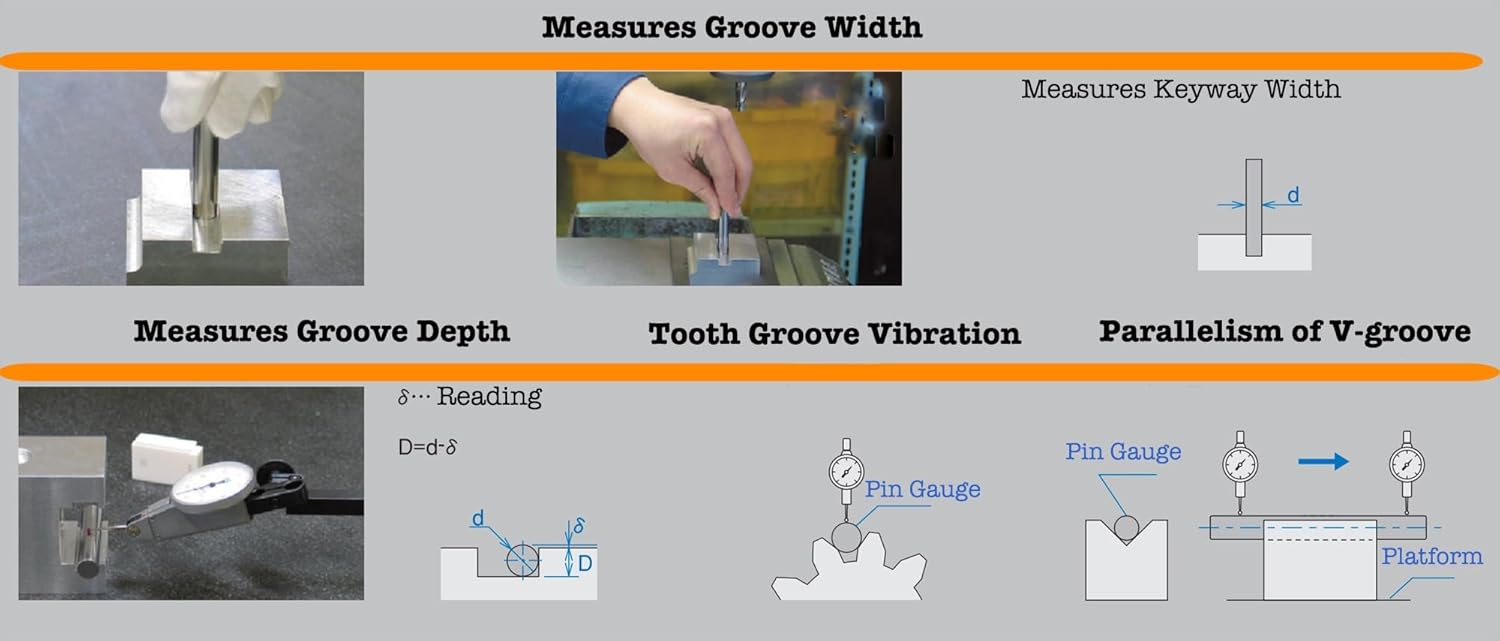

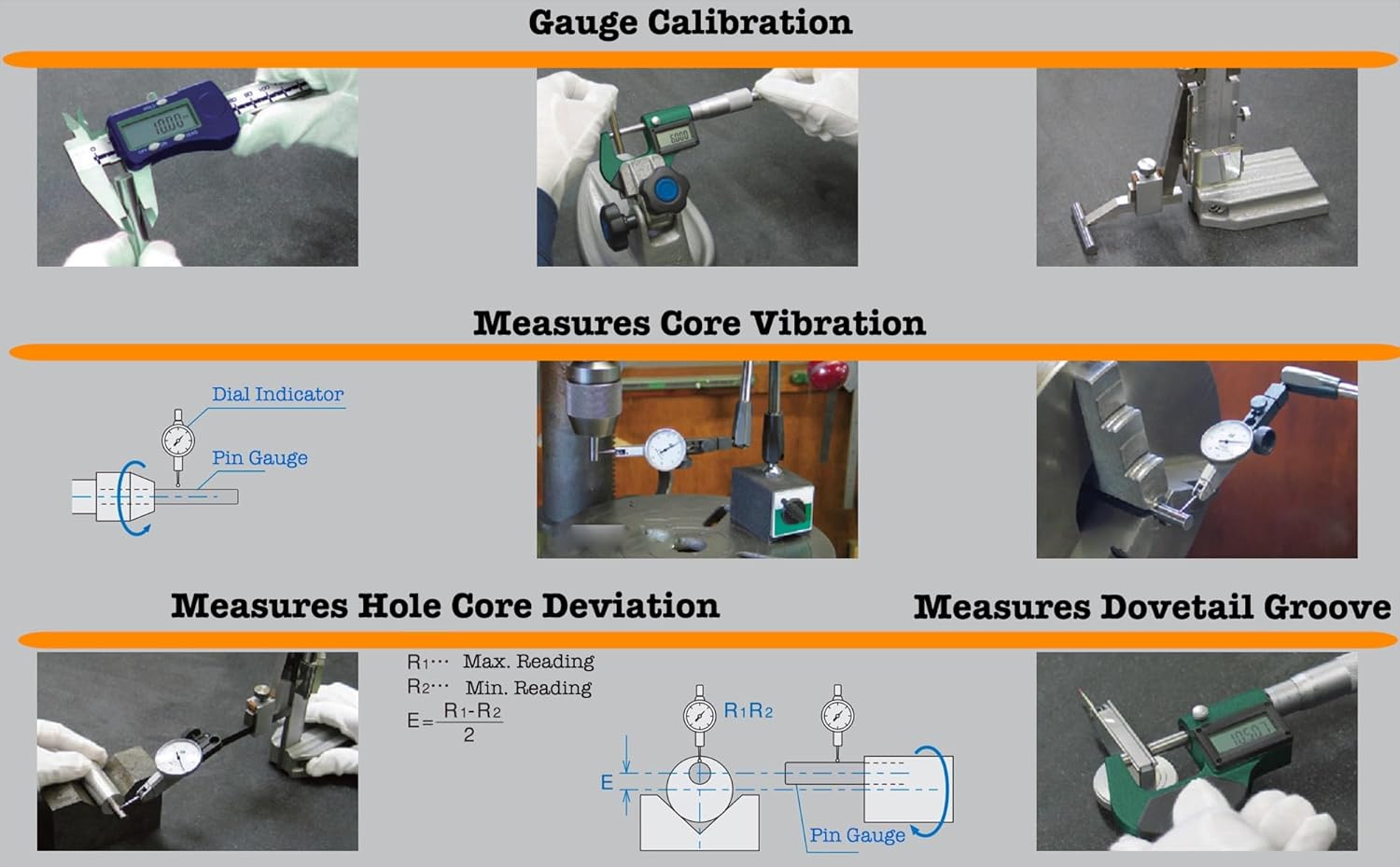

- Used to calibrate gauge, and measure core vibration, hole core deviation, dovetail groove, groove width, keyway width, tooth groove vibration, parallelism of V-groove, radius, aperture, hole spacing, hole position for parallelism, and position milling cutter
| Item Weight | 10.5 ounces |
|---|---|
| Manufacturer | Mefape |
| Package Dimensions | 7.72 x 5.91 x 2.52 inches |
